Wire Partitions and Security Enclosures
Wire Partitions and Security Enclosures
Wire Partitions and Security Enclosures



Alternative Views:


Spec Center

Style 840 Woven Wire Partitions MATERIAL SPECIFICATIONS

PANELS - Shall be 10gauge steel wire crimped and woven in to 2" x 1" opening rectangular mesh, securely welded into a frame of 1-1/4" x 1-1/4" x 1/8" steel angle factory punched with 7/8" x 7/16" slotted holes to accept 3/8" mounting hardware. Panels four to six feet wide shall have one 1/4" x 3/4" flat stiffener, wider panels receive two 1/4" x 3/4" stiffeners. All panels shall be fastened to posts with 3/8" x 3" plated bolts and nuts.

DOORS - Hinged shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two diagonal 1/4" x 3/4" stiffeners from center to the corner. Hinged doors shall be equipped with padlock lugs (cylinder lock optional), three 4" x 4" spun pin hinges, and pick plate/slam bar assembly.

DOORS - Sliding shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two vertical 1/4" x 3/4" stiffeners from center to top or bottom. Sliding doors shall be equipped with two 4 wheel trolley trucks, 1-7/8" x 2-3/8" door track, pad lock lugs (cylinder lock optional), and door keeper assembly.

POSTS - Shall be made of 2" x 2" x 14 gauge steel tubing. Base plates of 2" x 7" x 1/4" steel flat with two 7/16" round holes for anchoring, shall be welded to each tube. Posts are factory drilled with 1/2" holes to accept hardware for mounting panels.

HARDWARE - Shall be 3/8" standard thread grade two plated nuts and bolts. Floor anchors are 3/8" wedge type-provided.

FINISH - Non-plated parts receive one coat of gray acrylic enamel. Touch up paint included with each shipment.

Base Price $852.00

Availability:: Usually Ships in 3 to 5 Days
Product Code: 66080

Partition Sides:


With or Without Roof


Size: Length x Width x Height


Gate Type:

Gate Type*:


Qty:
Description

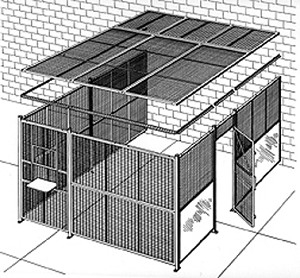

Style 840 Wire Partitions Wire partitions for the commercial and industrial marketplace. Wire partitions are a modular steel partition system that is used for safety, security, and separation. Welded or woven wire mesh is welded inside sturdy angle frames to create a single wire partition panel. These wire mesh partition panels are then bolted to square steel tubing posts to create a strong and rigid modular wall or enclosure.
